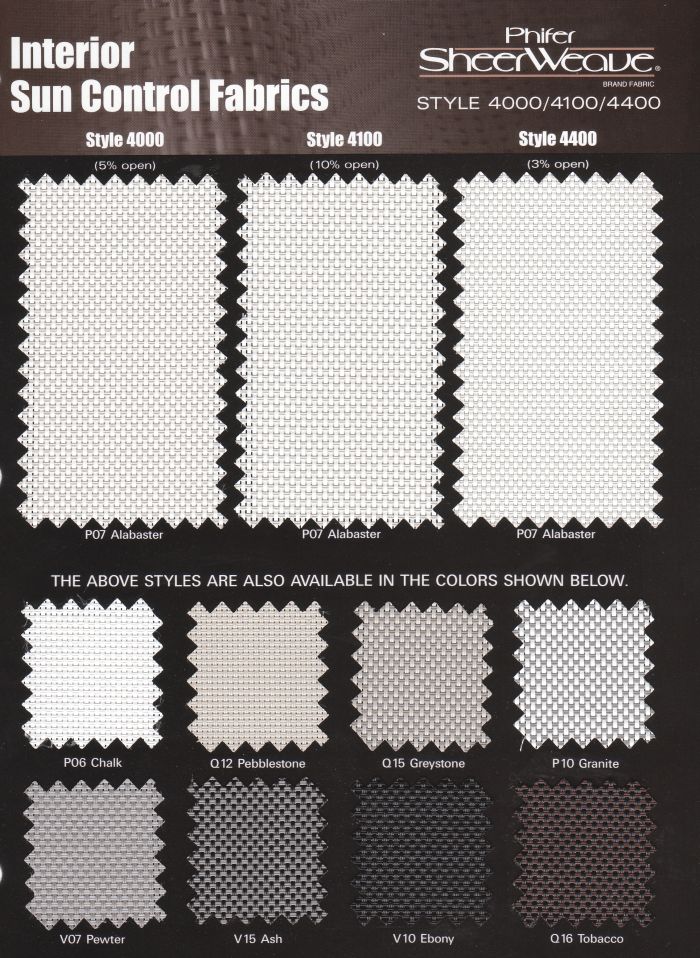

Phifer Sheerweave 4000/4100/4400 Ecolibrium

Phifer Sheerweave Styles 4000, 4100 and 4400 - Solar Shade Fabrics

Made from vinyl-coated polyester yarns, Styles 4000, 4100 and 4400 are designed with todays demanding commercial market in mind and are available in nine standard colors. Style 4000/4100/4400 can also be used in exterior roller shades.

Phifer Sheerweave 4000/4100/4400

Phifer Sheerweave Ecolibrium Styles 4000 4100 4400

Phifer Ecolibrium Styles 4000 4100 4400 Sheerweave



Phifer SheerWeave 4000/4100/4400 Specifications

Phifer SheerWeave 4000 5%



Available Widths: ,63", 84" & 98" (Now available in 126")
Roll Length: 30 Yards
Mesh Weight: 19.2 (oz./sqyd)
Yarn Diameter: (in) .020
Fabric Thickness: (in) .036
Openness Factor: Approximately 5%
Uv Blockage: Approximately 95%
Breaking Strength (lb): 315 Warp, 260 Fill
Stiffness (Mg.): 600 Warp, 400 Fill
Composition: 25% Polyester, 75% Vinyl on Polyester

Phifer SheerWeave 4100 10%


Available Widths: 63 ", 84" & 98"
Roll Length: 30 Yards
Mesh Weight: 17.5 (oz./sqyd)
Yarn Diameter: (in) .020
Fabric Thickness: (in) .035
Openness Factor: Approximately 10%
Uv Blockage: Approximately 90%
Breaking Strength (lb): 315 Warp, 230 Fill
Stiffness (Mg.): 600 Warp, 350 Fill
Composition: 25% Polyester, 75% Vinyl on Polyester

Phifer SheerWeave 4400 3%



Available Widths: 63 ", 84 & 98" (Now available in 126")
Roll Length: 30 Yards
Mesh Weight: 20.7 (oz./sqyd)
Yarn Diameter: (in) .020
Fabric Thickness: (in) .037
Openness Factor: Approximately 3%
Uv Blockage: Approximately 97%
Breaking Strength (lb): 340 Warp, 250 Fill
Stiffness (Mg.): 650 Warp, 450 Fill
Composition: 25% Polyester, 75% Vinyl on Polyester



Fire Classification: California U.S. Title 19 (small scale), NFPA 701-1999 TM#1 (small scale), NFPA 101 (Class A Rating), UBC (Class I), British Standard 5867, NFPA 701 TM#2 Large Scale and CAN/ULC S109-M-87.



Dow Ecolibrium Value Proposition: Dow Ecolibrium Bio Based Plasticizers offer a renewable aternative that is phthalate-free, offering a more sustainable option while having the same great performance and feel of current materials.

Lowers Greenhouse gas emissions as much as 40% vs existing PVC compounds, 98% of the plasticizer is derived from non fossil fuel based feed stock. Lower carbon footprint. Phthalate-Free. RoHS Compliant. LEED credits for rapidly renewable content may be available**

Made from vinyl-coated polyester yarns, Styles 4000, 4100 and 4400 are designed with todays demanding commercial market in mind and are available in nine standard colors. Style 4000/4100/4400 can also be used in exterior roller shades.

Special Order Item - Call to Place - 714 321 8109

Phifer Sheerweave 4000/4100/4400 - Sun Control Fabrics

Phifer Sheerweave 4000- 95% UV Blockage
63" x 30 Yards Sheerweave 4000
All Colors
Special Order
Call for Pricing
84" x 30 Yards Sheerweave 4000
All Colors
Special Order
98" x 30 Yards Sheerweave 4000
All Colors
Special Order
126" x 30 Yards Sheerweave 4000
All Colors
Special Order
Phifer Sheerweave 4100 - 90% UV Blockage
63" x 30 Yards Sheerweave 4100
All Colors
Special Order
Call for Pricing
84" x 30 Yards Sheerweave 4100
All Colors
Special Order
98" x 30 Yards Sheerweave 4100
All Colors
Special Order
Phifer Sheerweave 4400 - 97% UV Blockage
63" x 30 Yards Sheerweave 4400
All Colors
Special Order
Call for Pricing
84" x 30 Yards Sheerweave 4400
All Colors
Special Order
98" x 30 Yards Sheerweave 4400
All Colors
Special Order
126" x 30 Yards Sheerweave 4400
All Colors
Special Order

A Greener Shading Solution

Results are typical for the product and are for reference purposes only. This data cannot be used as a certification or specification.

  • Sheerweave 4000/4100/4400 Sample Card$4.00

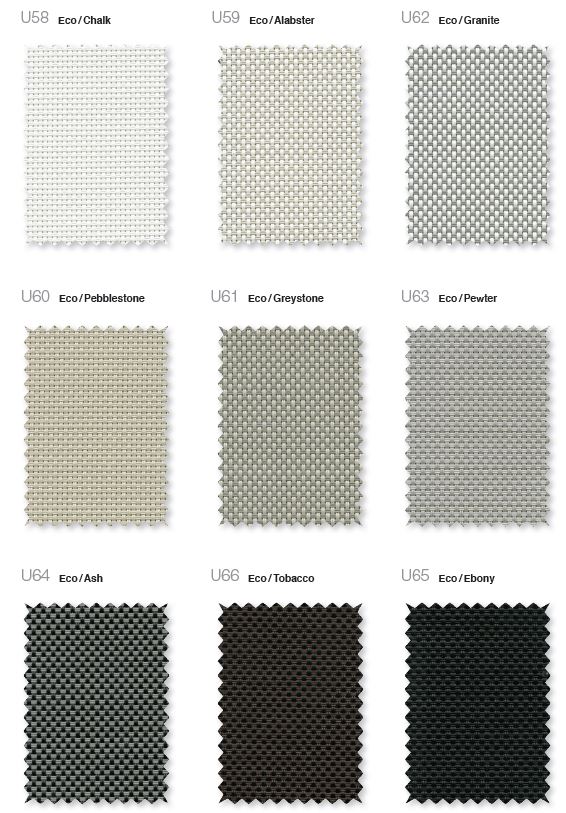

    Color Swatch Card
    Phifer Sheerweave 4000 4100 4400 Sample Color Card
