Phifer Sheerweave 4550/4650

Phifer Sheerweave 4550 and Sheerweave 4650 - Vinyl coated plyester roller shade fabric

Using thin polyester yarns and a unique twill weave, style 4550 and 4650 are easy to fabricate and offer a distinct two-sided appearance that maximizes both visibility and solar reduction. Styles 4550/4650 can also be used in exterior roller shades.

Phifer Sheerweave 4550/4650



Special Order Item - Call to Place - 714 321 8109



Phifer Sheerweave Styles 4550 and Style 4650
Phifer Sheerweave Interior Sun Control Fabrics Style 4550 and 4650





Phifer SheerWeave 4550/4650 Specifications

Phifer SheerWeave 4550

Available Widths: 63 " & 98"
Roll Length: 30 Yards
Mesh Weight: 12.5 (oz./sqyd)
Fabric Thickness: (in) .025
Openness Factor: Approximately 5%
Uv Blockage: Approximately 95%
Breaking Strength (lb): 182 Warp, 129 Fill
Stiffness (Mg.): 216 Warp, 159 Fill
Composition: 17% Polyester, 83% Vinyl on Polyester

Phifer SheerWeave 4650

Available Widths: 63 " & 98"
Roll Length: 30 Yards
Mesh Weight: 13.3 (oz./sqyd)
Fabric Thickness: (in) .026
Openness Factor: Approximately 3%
Uv Blockage: Approximately 97%
Breaking Strength (lb): 180 Warp, 135 Fill
Stiffness (Mg.): 215 Warp, 175 Fill
Composition: 17% Polyester, 83% Vinyl on Polyester

Interior Sun Control Fabrics
Standard Colors: See Chart
Standard Widths: 63" and 98"
Standard Roll Length: 30 Yards

Fire Classification: California U.S. Title 19 (small scale), ASTM E 84 (class 1), British Standard 5867 Type B, and NFPA 701 TM#1 Small Scale.



Woven from thin and light weight vinyl coated polyester yarns into a unique twill weave, Style 4550 and 4650 offer a distinct two-sided appearance that maximizes both outward visibility and solar heat reduction. Style 4550/4650 can also be used in exterior roller shades.



Phifer Sheerweave styles 4550 and 4650 are Lead Free, Flame Retardant, Energy Saving, Printable and come with Phifers 5/10 year warranty



Phifer Sheerweave 4550/4650 - Average Openness 5% & 3%

Phifer Sheerweave 4550 5%
63" x 30 Yards Sheerweave 4550
All Colors
Special Order
Call for Pricing
98" x 30 Yards Sheerweave 4550
All Colors
Special Order
Phifer Sheerweave 4650 3%
63" x 30 Yards Sheerweave 4650
All Colors
Special Order
Call for Pricing
98" x 30 Yards Sheerweave 4650
All Colors
Special Order

Results are typical for the product and are for reference purposes only. This data cannot be used as a certification or specification.



  • Sheerweave 4550/4650 Sample Card$4.00

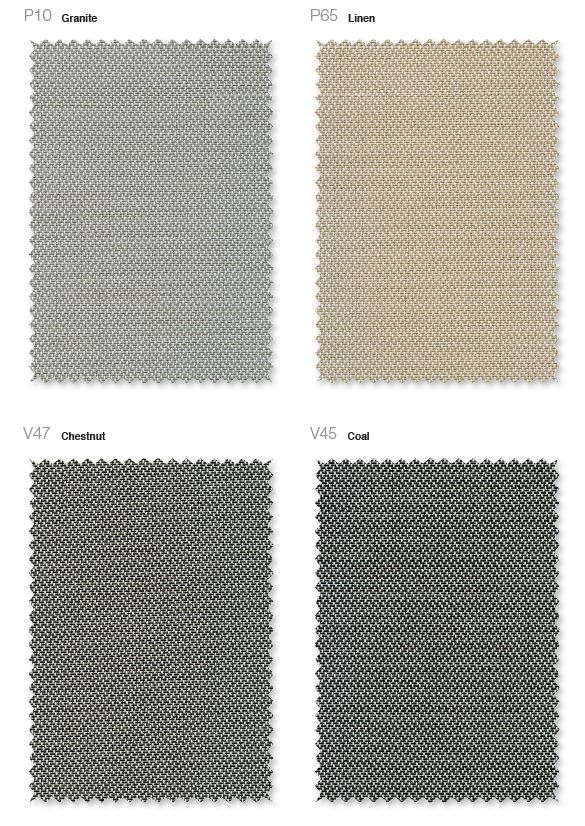

    Color Swatch Card

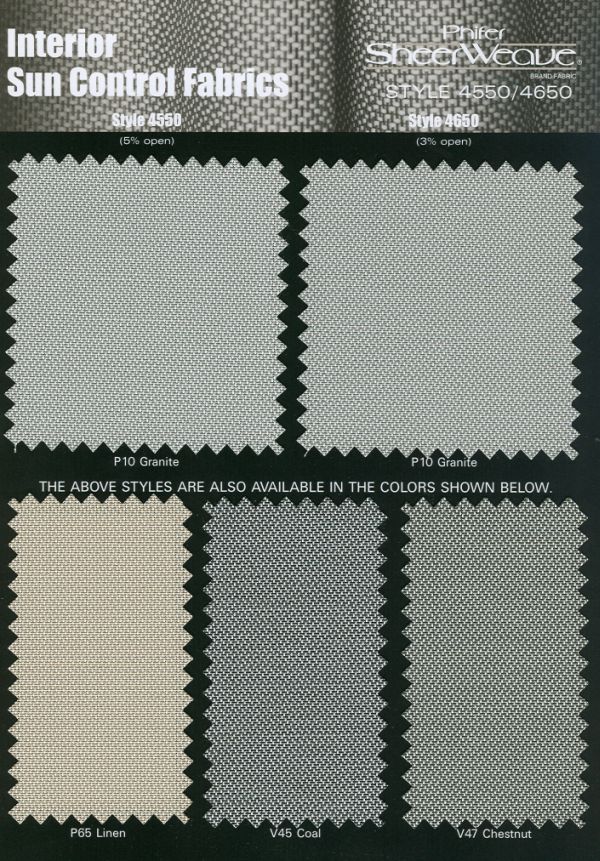

    Phifer Sheerweave 4550 4650 Sample Color Card
